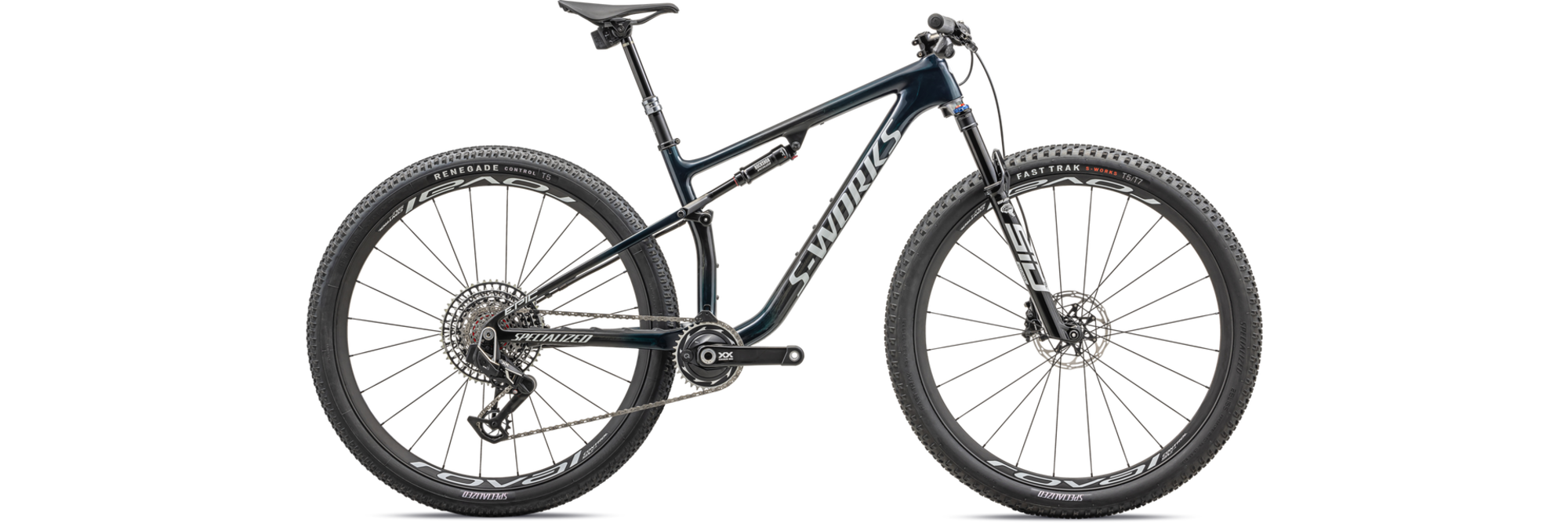

Specialized S-Works Epic LTD

Specialized S-Works Epic LTD
  • Color: Gloss Teal Tint Fades/Metallic White Silver
$11,000.00
Color: Gloss Teal Tint Fades/Metallic White Silver
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
Please Visit or call to verify Stock

Details

Hey you, yeah, you...the one with the scale out seeing which of the six identical tires on the shelf is the lightest. Sure, some might call you a bit obsessive, but no worries, here, the S-Works Epic LTD is speaking exactly the same language. Countless design hours, endless test laps, terabytes of telemetry data-all of it to make sure not a single ounce of speed was left on the table.

Mixing hardtail efficiency and full-suspension capability to impressively quick results, the S-Works Epic LTD has always been defined by obsessive commitment to speed. Well, that and over 100 World Cup wins and podiums too.

A SMARTER BRAIN
True to form, the latest Epic continues the tradition, taking advantage of the most efficient BRAIN suspension we've ever created to ensure it's always on a first-name-basis with fast.

Re-engineered hand-in-hand with the new Epic, the latest BRAIN design resets the expectation for efficiency, employing a new race-tuned pedaling platform to ensure every watt possible is translated into forward motion, while handily soaking up momentum-killing chatter and big hits alike-all more smoothly than ever.

FRAME-CHANGER
Redesigned with a focus on efficient power transfer and better handling performance, the S-Works Epic LTD frame features a 15-percent stiffer rear triangle in order to take full advantage of the BRAIN's new race-tuned pedaling platform. A dedicated layup schedule and the use of our top-shelf FACT 12m Carbon takes weight savings yet a step further than it's stablemates, while the piece de resistance comes in the form of a carbon fiber shock link, combining to shave a total of over 100 grams from the previous generation S-works frame-no easy task, mind you.

Pairing perfectly with the Brain rear shock for the most balanced suspension perfomance on an Epic yet, the S-Works' Position-Sensitive Brain fork benefits from RockShox's svelte-yet-stiff SID SL Ultimate chassis, improving front-end stiffness and handling precision while keeping the grams at bay.

SRAM's flagship XX Eagle AXS group certainly fits the bill when only the best will do, dispatching shifts with electronic authority while we tasked Roval with creating an entirely new Control SL rim that wouldn't just be able to go toe-to-toe with the Epic's newfound speed and handling performance, but add a bit of its own into the mix as well.

- If speed could talk, it'd introduce itself as the all-new S-Works Epic frame. Offering 100-millimeters of brilliantly efficient Brain-controlled travel, the S-Work Epic increases rear-triangle stiffness for peerless power transfer, while the use of FACT 12m carbon, a dedicated layup and a full carbon shock link also make it the lightest full suspension frame we've ever created, all while offering the most capable handling in an Epic yet. Nice to meet you, speed.
- Pairing 100 millimeters of the most efficent travel on earth with RockShox's svelte-yet-stiff SID SL Ultimate chassis, the RockShox SID SL Ultimate BRAIN fork serves as the pinnacle of XC-race supsension perfection.
- SRAM's XX Eagle AXS isn't just the lightest electronic MTB groupset on the market, it's also designed to withstand World-Cup winning chain loads while instantaneously snapping of instantaneous shifts to ensure you're never caught on the back foot.
- Created specifically to match the increased capabilities of the Epic, the Roval Control SL rim introduces a completely new offset rim profile that features a 29-millimeter-wide internal width and not only increases strength and reduces weight, but also improves pinch-flat resistance by 22-percent.

Sizes:
Frame SizeSmallMediumLargeX-Large
Crank Length (mm)170 170175175
Handlebar Width (mm)760 760760760
Stem Length (mm)60 707070
Saddle Width (mm)155 143143143
Seatpost Length (mm)100 125150150
Stack (mm)586 591605623
Reach (mm)415 445470495
Head Tube Length (mm)95 100115135
Head Tube Angle (°)67.5 67.567.567.5
BB Height (mm)324 324324324
BB Drop (mm)48 484848
Trail (mm)106 106106106
Fork Length, Full (mm)505 505505505
Fork Rake/Offset (mm)44 444444
Front Center (mm)687 719750782
Chainstay Length (mm)433 433433433
Wheelbase (mm)1116 114811791211
Bike Standover Height (mm)763 766776788
Seat Tube Length (mm)400 430470520
Seat Tube Angle (°)75.8 75.575.575.5
Top Tube Length, Horizontal (mm)563 598626656

Specs

Fork RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 110mm Travel
Hubs F: Roval Control SL, DT Swiss Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, Torque caps, 24h straight pull, R: Roval Control SL, DT Swiss 180 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h straight-pull
Rims Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h
Stem S-Works SL, alloy, titanium bolts, 6-degree rise
Chain SRAM XX SL Eagle Flat top
Frame S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm UDH compatible rear spacing, internal cable routing, 100mm of travel
Tires F: Specialized S-Works Fast Trak, S-Works Casing, T5/T7 Compound, 29x2.35, R: Specialized Renegade, Control Casing, T5 Compound, 29x2.35
Saddle Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
Spokes DT Swiss Aerolite T-head
Crankset SRAM XX SL Eagle Power Meter Crankset, 170mm/175mm, 34t chainring
Seatpost RockShox Reverb AXS, 30.9mm, S/M: 125, L-XL:150
Shifters SRAM AXS POD Controller
Chainrings 34t
Handlebars S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm
Rear Shock RockShox-Specialized BRAIN, Rx XC Tune, 5 Position Platform Adjust, Rebound Adjust, Integraded Extension, 265x52.5mm
Tape/Grips Specialized Trail Grips
Bottom Bracket SRAM DUB Threaded Wide
Rear Derailleur SRAM XX SL Eagle AXS
Accessories & Extras SWAT Box, Bottle cage Tool cradle, EMT top cap chain tool
Cassette/Freewheel SRAM XX Eagle SL 10-52t

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gloss Teal Tint Fades/Metallic White Silver / Small / 29-inch 888818912537 90323-0402
Gloss Teal Tint Fades/Metallic White Silver / Medium / 29-inch 888818912421 90323-0403
Gloss Teal Tint Fades/Metallic White Silver / Large / 29-inch 888818912551 90323-0404
Gloss Teal Tint Fades/Metallic White Silver / X-Large / 29-inch 888818912582 90323-0405
