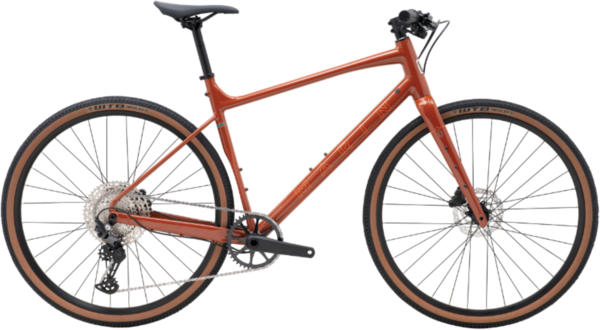

Marin DSX 2
$1,249.00
Details
The DSX is a flat bar gravel bike based on our Gestalt X dropbar platform with Series 3 and Series 2 aluminum frames and carbon forks with large tire clearance, low standover, hydraulic disc brakes, and 1x drivetrains with the comfort and heads up positioning of a flat handlebar. Mountain bike sensibilities in a flat bar package capable of fast commutes, long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.
| Frame Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Stack (mm / in) | 544.4 / 21.4 | 572.5 / 22.5 | 600.6 / 23.6 | 628.7 / 24.8 |
| Reach (mm / in) | 380 / 15.0 | 405 / 15.9 | 420 / 16.5 | 435 / 17.1 |
| Headtube Angle (degrees) | 69.5° | 69.5° | 69.5° | 69.5° |
| Headtube Length (mm / in) | 120 / 4.7 | 150 / 5.9 | 180 / 7.1 | 210 / 8.3 |
| Seattube Angle (degrees) | 74° | 74° | 74° | 74° |
| Seattube Length (mm / in) | 430 / 16.9 | 480 / 18.9 | 520 / 20.5 | 558 / 22.0 |
| Toptube Effective (mm / in) | 536.1 / 21.1 | 569.2 / 22.4 | 592.2 / 23.3 | 615.3 / 24.2 |
| BB Height (mm / in) | 279.5 / 11.0 | 279.5 / 11.0 | 279.5 / 11.0 | 279.5 / 11.0 |
| BB Drop (mm / in) | 80 / 3.1 | 80 / 3.1 | 80 / 3.1 | 80 / 3.1 |
| Chainstay (mm / in) | 425 / 16.7 | 425 / 16.7 | 425 / 16.7 | 425 / 16.7 |
| Wheelbase (mm / in) | 1024.4 / 40.3 | 1060 / 41.7 | 1085.4 / 42.7 | 1110.9 / 43.7 |
| Standover Height (mm / in) | 658.8 / 25.9 | 700.5 / 27.6 | 730.4 / 28.8 | 758.5 / 29.9 |
| Fork Offset (mm / in) | 50 / 2.0 | 50 / 2.0 | 50 / 2.0 | 50 / 2.0 |
| Seatpost Diameter (mm / in) | 27.2 / 1.1 | 27.2 / 1.1 | 27.2 / 1.1 | 27.2 / 1.1 |
| Handlebar Width (mm / in) | 640 / 25.2 | 680 / 26.8 | 680 / 26.8 | 680 / 26.8 |
| Stem Length (mm / in) | 70 / 2.8 | 70 / 2.8 | 70 / 2.8 | 70 / 2.8 |
| Crank Length (mm / in) | 170 / 6.7 | 175 / 6.9 | 175 / 6.9 | 175 / 6.9 |
Specs
| Frame | Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Rims | Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible |
| Hubs | Front: Forged Aluminum, 142x12mm, Disc Specific, 32H Rear: Forged Aluminum, 100x12mm, Disc, 32H |
| Tires | WTB Riddler, 700Cx45mm |
| Bottom Bracket | Sealed Outboard Bearing |
| Crankset | Forged Aluminum, 42T Steel Narrow Wide Chainring |
| Shifters | Shimano Deore, SLM6100, 12-Speed |
| Rear Derailleur | Shimano Deore, RDM6100, 12-Speed |
| Cassette/Freewheel | SunRace, 12-Speed, 11-51T |
| Chain | KMC X12 |
| Brakes | Front: Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor Rear: Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor |
| Brake Levers | Tektro Hydraulic |
| Handlebars | Marin MiniRiser |
| Tape/Grips | Marin MTB |
| Stem | Marin 3D Forged Alloy |
| Headset | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Seatpost | Marin Alloy |
| Saddle | Marin DSX |
| Pedals | Nylon Platform |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Dark Clay Blue / Small / 700c | 843346134721 | 740693001 | |
| Dark Clay Blue / Medium / 700c | 843346134738 | 740693002 | 210000015899 |
| Dark Clay Blue / Large / 700c | 843346134745 | 740693003 | 210000015901 |
| Dark Clay Blue / X-Large / 700c | 843346134752 | 740693004 |
