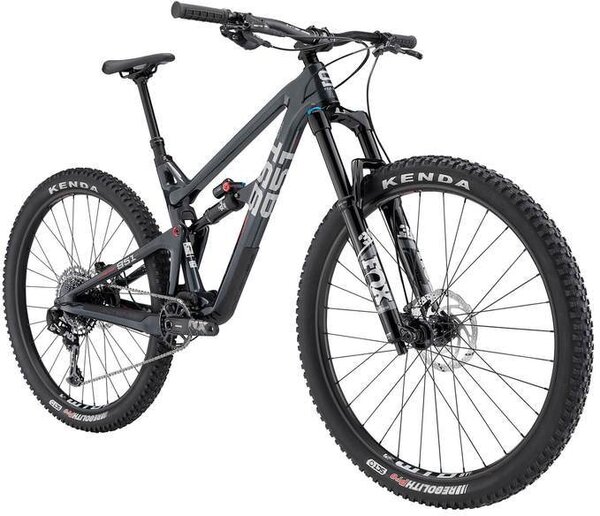

Intense Cycles 951 Trail
Details
THE 951 TRAIL IS THE PERFECT DO-IT-ALL FULL SUSPENSION TRAIL BIKE. WITH 140MM OF REAR TRAVEL AND CONFIDENCE INSPIRING GEOMETRY, THIS CARBON FRAME BIKE WILL FEEL JUST AS STABLE SURFING DOWN ROUGH TERRAIN AS IT DOES PEDALING UP.
TRUE TO THE TRAIL.
The 951 Trail was developed to sit perfectly in between a cross country and enduro/downhill bike. Tested and developed on world class trails in Southern California the 951 Trail is ready to surf through any terrain.
COMPONENTS THAT COMPLIMENT.
The 951 Trail comes standard with components that have been tested and vetted by our global team of ambassadors and athletes. From the Fox Performance level suspension to the 12-speed SRAM drivetrain, all components are backed by world class manufacturers.
SPECS // 951 SERIES TRAIL
| FRAME |
INTENSE 951 TRAIL 29” 140mm Travel |
|---|---|
| FORK |
FOX Rhythm 36 Float. 150 mm Travel. Grip Damper - Sweep Adj |
| REAR SHOCK |
FOX Performance Float DPX2. 3-position (Open, Trail, Lock-out) |
| HEADSET |
TANGE SEIKI ZS44-EC49/40 |
|
STEM |
INTENSE Recon 45mm |
| HANDLEBARS |
INTENSE Recon 780mm width |
| GRIPS |
INTENSE Lock-on |
| BRAKES |
TRP Slate T4 Calipers and Levers, Front and Rear |
| ROTORS |
TRP 180mm. Front and Rear |
| SHIFTER |
SRAM NX Eagle 12sp |
|
DERAILLEUR |
SRAM NX Eagle 12sp |
| CRANKS / CHAINRING |
SRAM NX Eagle 32t. ST. 170mm. (S,M,L), 175mm. (XL) |
|
BOTTOM BRACKET |
SRAM DUB |
| CASSETTE |
SRAM PG 1230 Eagle 12sp 11-50t |
|
CHAIN |
SRAM NX Eagle 12sp |
|
HUBS |
INTENSE Alloy |
|
SPOKES |
DT |
|
WHEELS |
29” WTB ST i30 Aluminum (30mm internal width) w/INTENSE alloy hubs |
|
TIRES |
KENDA Regolith 29" x 2.40" |
| SEATPOST |
INTENSE Recon Dropper 125mm Travel (S), 150mm Travel (M,L), 170mm Travel (XL) |
| SADDLE (SEAT) |
FIZIK Terra Alpaca X5, Alloy Rails |
GEOMETRY
NOTE: 29 GEOMETRY TAKEN AT TOP OUT WITH 557MM AXLE TO CROWN LENGTH AND 51MM FORK OFFSET.
| SIZE | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| A: WHEELBASE | 1170mm 46" |
1200mm 47.2" |
1229mm 48.4" |
1267mm 50" |
| B: TOPTUBE LENGTH | 578mm 22.7" |
608mm 23.9" |
636mm 25" |
6673mm 26.5" |
| C: CHAINSTAY LENGTH | 440mm 17.3" |
440mm 17.3" |
440mm 17.3" |
440mm 17.3" |
| D: HEADTUBE LENGTH | 90mm 3.54" |
90mm 3.54" |
100mm 3.94" |
120mm 4.7" |
| E: HEADTUBE ANGLE | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° |
| F: REACH | 411mm 16.2" |
442mm 17.4" |
467mm 18.4" |
497mm 19.6" |
| G: STACK | 612mm 24" |
612mm 24" |
622mm 24.5" |
640mm 25.2" |
| H: BB HEIGHT | 346mm 13.6" |
346mm 13.6" |
346mm 13.6" |
346mm 13.6" |
| I: BB DROP | 29mm 1.1" |
29mm 1.1" |
29mm 1.1" |
29mm 1.1" |
| J: SEATTUBE ANGLE (EFFECTIVE) | 75 ° | 75 ° | 75 ° | 75 ° |
| K: SEATTUBE (ACTUAL) | 70° | 70° | 70° | 70° |
| L: SEATTUBE LENGTH (K) | 408mm 16" |
431mm 17" |
451mm 17.8" |
476mm 18.7" |
| M: STANDOVER HEIGHT | 815mm 32" |
815mm 32" |
819mm 32.2" |
828mm 32.5" |
Specs
| Frame | INTENSE 951 TRAIL 29” 140mm Travel |
|---|---|
| Fork | FOX Rhythm 36 Float. 150 mm Travel. Grip Damper - Sweep Adj |
| Headset | TANGE SEIKI ZS44-EC49/40 |
| Rear Shock | FOX Float X 2-position (Open, Firm) |
| Rims/Wheels | 29” WTB ST i30 Aluminum (30mm internal width) w/INTENSE alloy hubs |
| Hubs | INTENSE Alloy |
| Spokes | DT |
| Tires | KENDA Regolith 29" x 2.40" |
| Crankset | SRAM NX Eagle 32t. ST. 170mm. (S,M,L), 175mm. (XL) |
| Bottom Bracket | SRAM DUB |
| Chain | SRAM NX Eagle 12sp |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM NX Eagle 12sp |
| Rear Cogs | SRAM PG 1230 Eagle 12sp 11-50t |
| Shifters | SRAM NX Eagle 12sp |
| Handlebars | INTENSE Recon 780mm width |
| Tape/Grips | INTENSE Logo Lock-on |
| Stem | NTENSE Recon 45mm |
| Brake Levers | TRP Slate T4 Calipers and Levers, Front and Rear |
| Brakes | TRP Slate T4 Calipers and Levers, Front and Rear--TRP 180mm. Front and Rear |
| Pedals | N/A |
| Saddle | FIZIK Terra Alpaca X5, Alloy Rails |
| Seat Post | INTENSE Recon Dropper 125mm Travel (S), 150mm Travel (M,L), 170mm Travel (XL) |
| Color(s) | Grey |
| Sizes | Medium |
* Subject to change without notice.
Videos
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Grey / Medium | 21PCP9SPTM-GRY-FJM-NA | 210000013128 |
